Our LiDAR Services

MSDI is proud to bring the drones LiDAR survey services in Indonesia. We can provide aerial topographic services, high precision survey grade by UAV for different industries like

  • Mining
  • Oil & GAS
  • Forest Management
  • Civil Engineering
  • Real estate development
  • Archaeology
  • Corridor monitoring
  • Scientist exploration
  • and much more…

Our drone is equipped with the last 3d Laser scanner technology and provide reliable and accurate data for your project.

What is the LiDAR and how it works?

LiDAR for Light Detection and Ranging, it is an assembly of different modules capable of emitting a light (laser) and measuring its variations when it encounters an obstacle. These variations are transcribed into points that can be classified and represent at the end a point cloud that will be a 3D representation of our environment.

To perform the mapping, we will grid the area with our drones, above a defined perimeter. During the flight, the laser raises more than 100,000 points per second and is able to pierce the vegetation to reach the ground. Our drones and LiDAR are synchronized with an RTK GNSS Base Station who sends the GPS correction in real-time to keep a centimetric accuracy. In some cases, we process the GPS correction in post-flight using PPK technology.

With this method, we can generate Digital Elevation Model (DEM) but also Digital Terrain Model (DTM) because the laser and our software are able to classify the readings to make it appear only some object class in post processing, like trees or buildings for example.

From these point clouds, we can also extract other data, such as contours lines and we can realize orthomosaic plans, thanks to the photos captured during the flight. These data can be integrated into your professional software (GIS and autocad for example)

For More information or booking please, contact us :

The benefits of using LiDAR technology

Multi layer capabilities

The mapping with UAV LiDAR allows seeing through multiple layers of foliages. With our equipment, we are able to pass 5 layers of foliage because the laser is a certified 5 echo target. So we can see deeper than other LiDAR solutions in Indonesia.

Dense Vegetation

The 3D laser scanner is perfect for density measurement and detailed detection. We can penetrate foliage and plant-life, capturing depth data that are unattainable with traditional surveying and mapping – useful for industries such as Agriculture, Forestry, and Land Management.

Precise & detailed detection

Compared to airborne LiDAR solution, the UAV solution allows us to fly at low altitude to capture all the details and detect objects accurately. Valuable for Archaeology, Forestry, Land Management, and Energy & Utilities.

Precise to the centimeter

One of the biggest benefits of LiDAR technology is Accuray and Precision. Our laser has an accuracy of 5cm and a precision of 1cm. So we are able to measure an object to the nearest centimeter and to position it to within 5cm compared to reality.

Volumetrics Measurement

Due to high accuracy and high detailed maps, we are able to measure the volume contained within an area. It's perfect for mining and aggregates stockpiles, dredging, in landfills and industrial sites, or any location where volume measurement is vital.

Elevation Modeling

LiDAR data helps create high-precision 3D models that deliver robust information not possible with traditional surveying. We can extract elevation data and generate contour lines. Useful for many industries, including Civil Engineering, Agriculture, Land Management, and Construction.

Cost-saving

Where the mapping by plane and helicopter are expensive, the lidar reduces costs thanks to a lower hourly rate. And because data collection and processing are faster, you save time and therefore money on your project, by reducing the time of your team on the field or waiting for the results.

Faster

Compare to a traditional survey, the Lidar can reduce delays by 30 times. The process is simple: We plan the flight in our offices and carry out the survey in the field using our grid method, the precision data is then processed by our teams on our super-computers. No need to spend days or weeks in the field, the drone takes care of everything, in record time.

Reliable Technology

Year after year the Lidar has already proven itself and is now a safe bet. Thanks to technological advances, this system can now be integrated into drones and is no longer reserved only for aircraft. This technology is now used around the world for all activities that require precision and reliability.

A question ?  Contact us now !

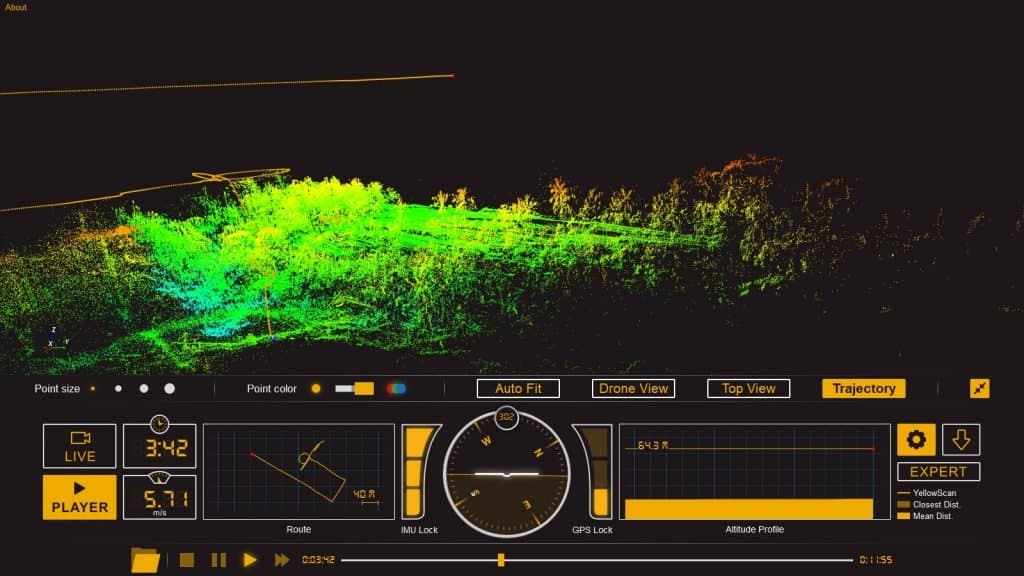

Our system is able to follow in real time the drone evolutions and gives a preview of the future point cloud directly on our monitor screen. We can thus make decisions more quickly to improve data collection and also check that there is no blind area in the 3D plane and that all the data is consistent.

Example of file output capabilities / data export*

*the list below is given as an indication, some softwares may be missing, please contact us for more information and to verify that your software will be compatible.

Orthomosaic raster

geoTIFF (.tiff), KML tiles (.png/.kml)

Contours Lines

Shapefile (.shp, .shx), .dxf, .dwg

Point Cloud

.las, .laz, .ply, .ascii

DSM, DEM, DTM

geoTIFF (.tiff)
